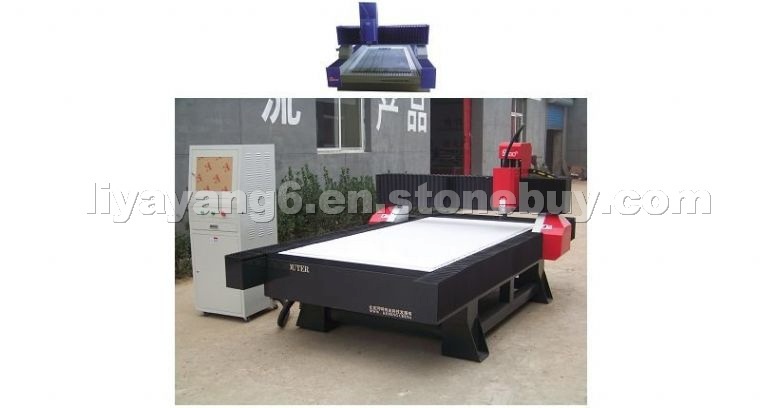

FANCH CNC router for Marble

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1465030

• Place of Origin:

  China
• Scope of application:
  It is widely used in advertisement, stone, wood, craft, metal products industry, and can process all kinds of stones, double-color sheet, pvc, acrylic, wood, aluminum, brass, fire plate and any other materials.
  Using high accurate pinion and rack transmission. The highest speed is 18m/min.It can clearly engrave the 1mm small word.
  The lathe equips with a gutter and an automatic water supply system.
  Spindle motor adopts 4.5KW water-cooling with the speed 24000rpm/min, which is very powerful and with little noise .It can work continuously without maintaining.
  Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its intelligent processing and protection of boundary crossing avoids crashing while design area is beyond processing area.
  Advanced industrial controlling system is compatible to many dictate formats that can
  operate after accident or processing in the following day , so it is very convenient.
  Technology Parameter
  Outer dimension 1850*3000*1600mm(length*width*height)
  Working area 1300*2500mm
  Height of z axis150mm
  Table size 1340*3000mm
  Max travel speed18m/min
  Max feed-in height150mm
  Resolution ratio0.025mm
  Command languageHPGL、G code﹡.u00﹡.mmg﹡.plt
  Operating enviroment software Windows98/2000/XP
  Supported Artcam,autocad,type3,coreldraw,photoshop,wentai,Nc studio
  Power(without spindle）600W
  voltageAc380V/50Hz
  Power of the spindle4.5kw
  Rotary speed of the spindle6000—24000rpm/min
  Cooling type Water-cooling
  Rails of the machineImported LSK square rails
  Work mode stepping（rack transmission）
  weight 1000kgs
